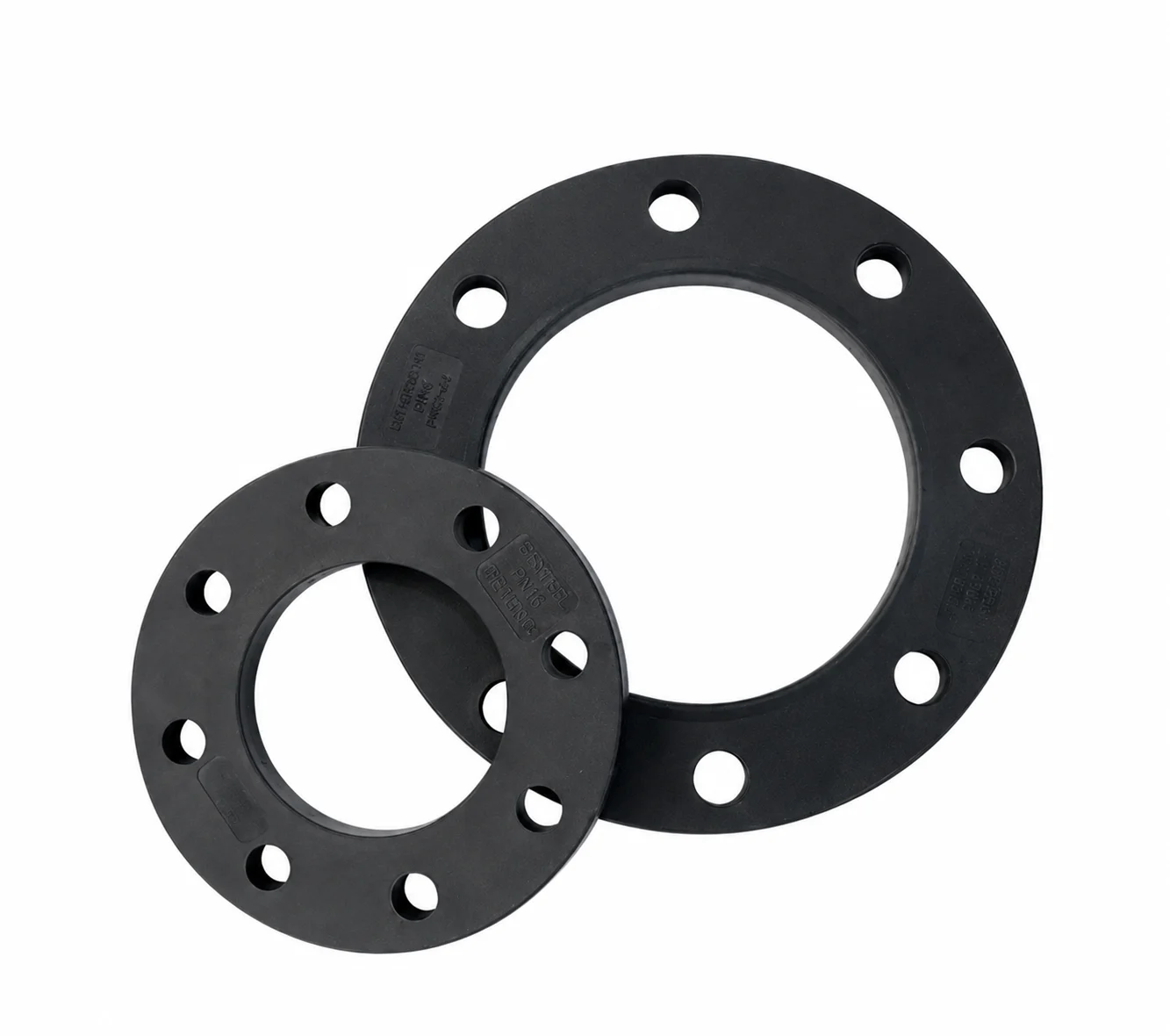

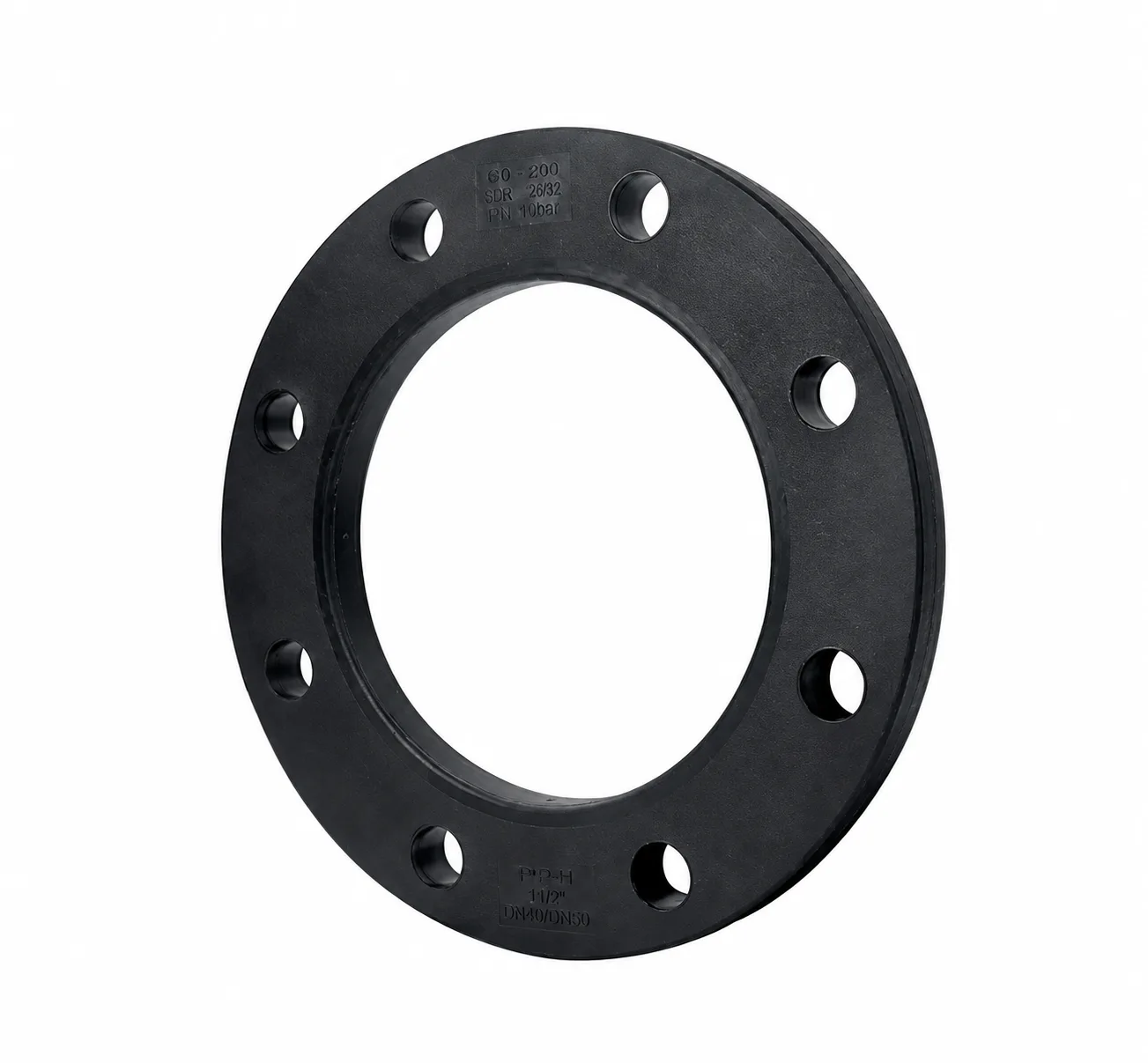

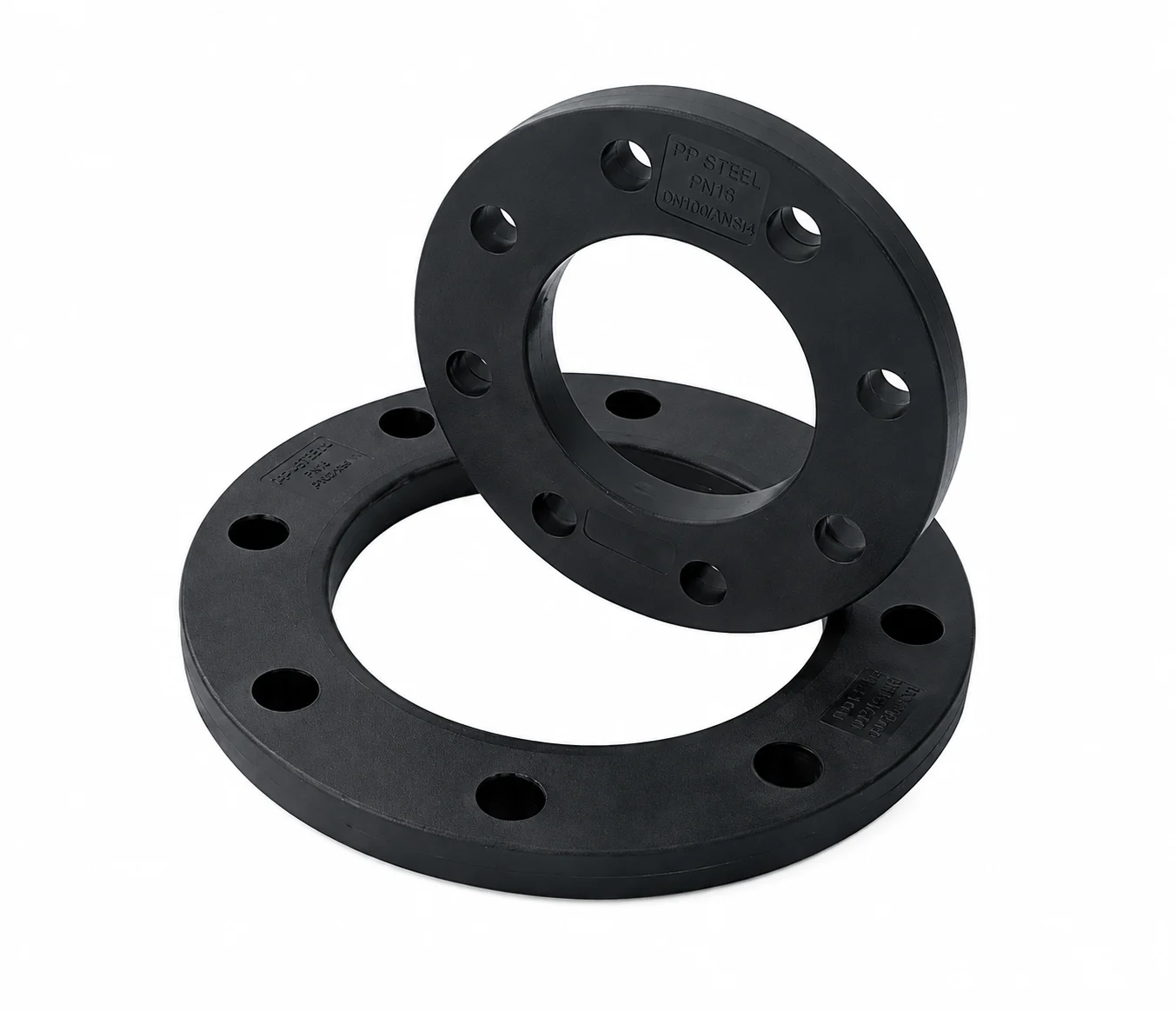

PP-Coated Steel Backing Ring

Corrosion-protected steel backing ring for secure bolted connection of PE fuel-pipe flange adaptors.

RAIPL-BR-PP

Nominal Size

63 mm / 90 mm / 110 mm

Construction

Steel Core with Reinforced PP Coating

Jointing Method

Bolted Flange Assembly

Applicable Standard

ASME B16.5 Class 150 / DIN PN16*

Overview

The RAIPL PP-Coated Steel Backing Ring is designed for use with compatible PE flange adaptors and stub ends in underground fuel-piping systems. The steel core provides the strength required for bolted flange connections, while the reinforced polypropylene coating improves protection against moisture, chemicals and corrosive site conditions.

Key Benefits

Steel-core structural strength
Reinforced polypropylene coating
Suitable for PE flange adaptors
Bolted equipment connection
Corrosion-protected construction
Available for 63, 90 and 110 mm systems

Features

Strong Flange Support
The rigid steel core distributes bolt pressure around the PE flange adaptor and supports a secure equipment connection.

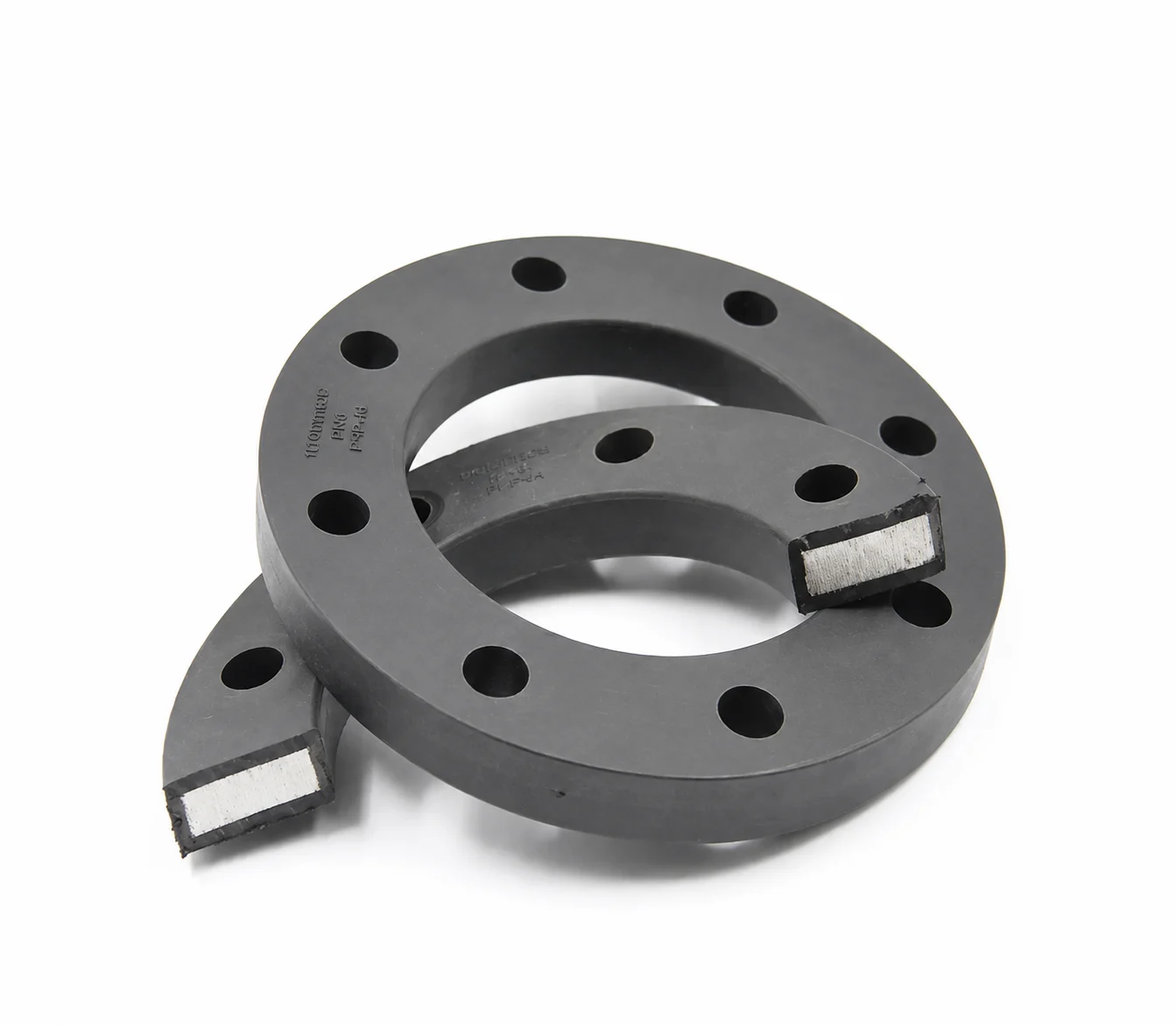

Protective PP Coating
The reinforced polypropylene covering helps protect the steel core from moisture, chemicals and corrosive underground conditions.

Bolted Equipment Connection
Enables PE fuel piping to connect with compatible flanged valves, pumps, transition pieces and other system equipment.

Replaceable Assembly
The backing ring forms part of a detachable bolted connection, allowing equipment to be removed or serviced without cutting the PE pipeline.

Multiple Drilling Options
The ring can be supplied with the flange-drilling pattern required for the connected equipment, subject to the approved RAIPL drawing.

Specifications

Product Type

PP-Coated Steel Backing Ring

Reference Size Range

63 mm / 90 mm / 110 mm

Core Material

Steel

External Coating

Fibre-Reinforced Polypropylene

Connection Type

Bolted Flange

Compatible Component

PE Flange Adaptor / Stub End

Drilling Options

ASME Class 150 / DIN PN16*

Colour

Black

Application

Fuel-Pipe Equipment Connection

Installation Position

Behind PE Flange Adaptor
