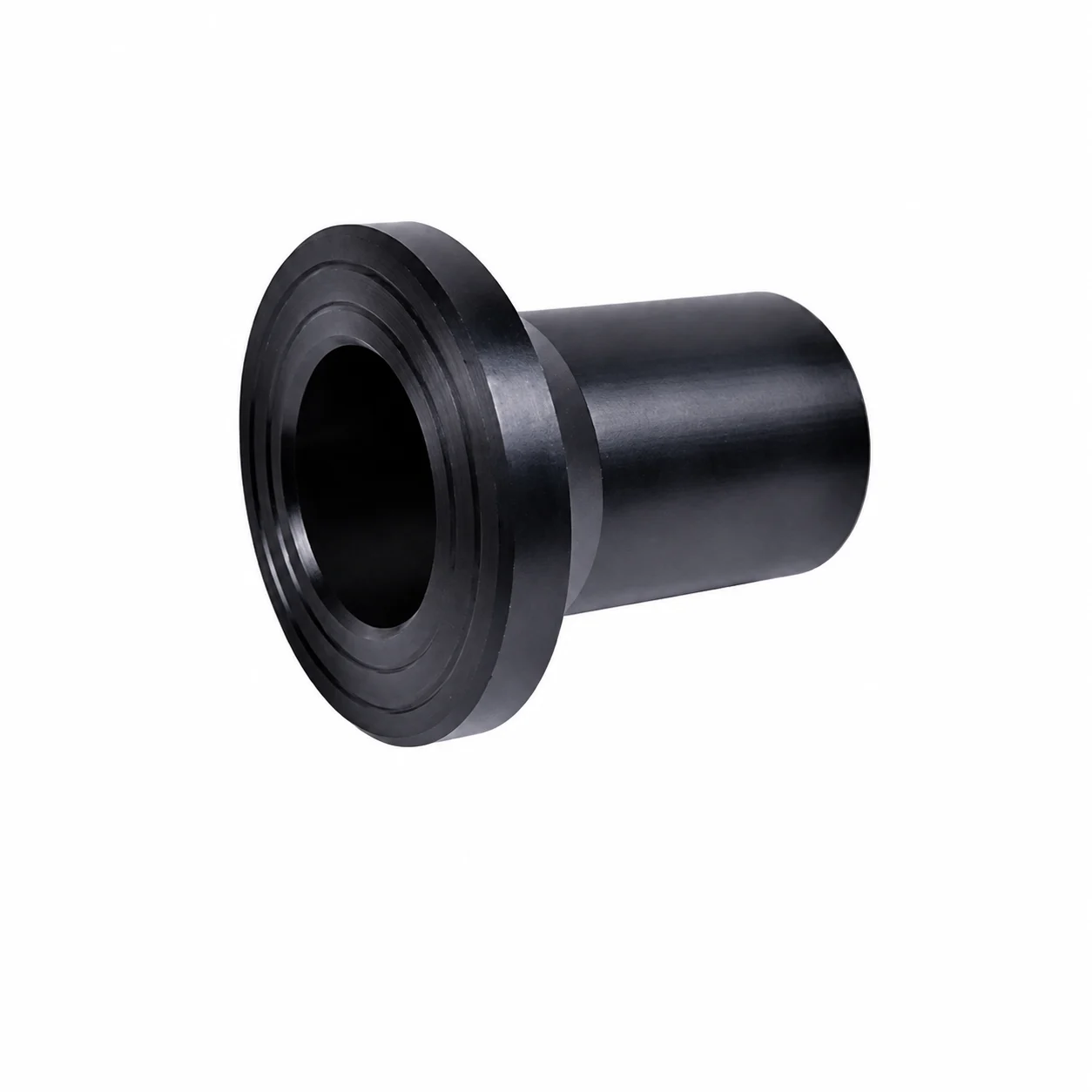

PE100 Flange Adaptor / Stub End

Machined PE100 fitting for connecting underground fuel pipes to compatible flanged valves and equipment.
RAIPL-FA-BF
Nominal Size
63 mm / 90 mm / 110 mm
Construction
Machined PE100 Full-Face Adaptor
Jointing Method
Butt Fusion × Bolted Flange
Applicable Standard
EN 14125:2025*
Request a Quote
Overview
Features
Specifications
Photos
Videos

Overview

The RAIPL PE100 Flange Adaptor / Stub End provides a reliable transition between polyethylene fuel piping and compatible flanged valves, pumps and metallic equipment. The PE end is butt-fused directly to the fuel pipe, while the full flange face works with a separate backing ring, gasket and bolt assembly to create a detachable equipment connection.

Key Benefits

  • Machined PE100 construction
  • Butt-fusion pipe connection
  • Full-face flange design
  • Compatible with separate backing rings
  • Detachable equipment connection
  • Available in 63, 90 and 110 mm

Features

Secure PE Pipe Connection
The PE end is butt-fused directly to a compatible RAIPL fuel pipe, creating a strong and continuous polyethylene connection.
Full-Face Flange Support
The wide flange face provides a stable sealing surface for the gasket and supports even compression across the bolted connection.
High-Strength PE100 Construction
Machined PE100 construction provides structural strength, dimensional stability and resistance to underground moisture and corrosion.
Detachable Equipment Connection
The bolted flange assembly allows connected valves or equipment to be removed for inspection, replacement or maintenance without cutting the PE pipeline.
Compatible Backing-Ring Assembly
The adaptor is designed to work with a correctly sized backing ring, gasket, bolts and matching equipment flange.

Specifications

Product Type
PE100 Flange Adaptor / Stub End
Reference Size Range
63 mm / 90 mm / 110 mm
Material
PE100
Manufacturing Method
Machined from PE Pipe Blank
PE Connection
Butt Fusion
Equipment Connection
Bolted Flange Assembly
Flange Type
Full Face
Compatible Component
PP-Coated Steel Backing Ring
Sealing Component
Compatible Flange Gasket
Colour
Black
Application
Fuel-Pipe Equipment Connection
Applicable Standard
EN 14125:2025*
