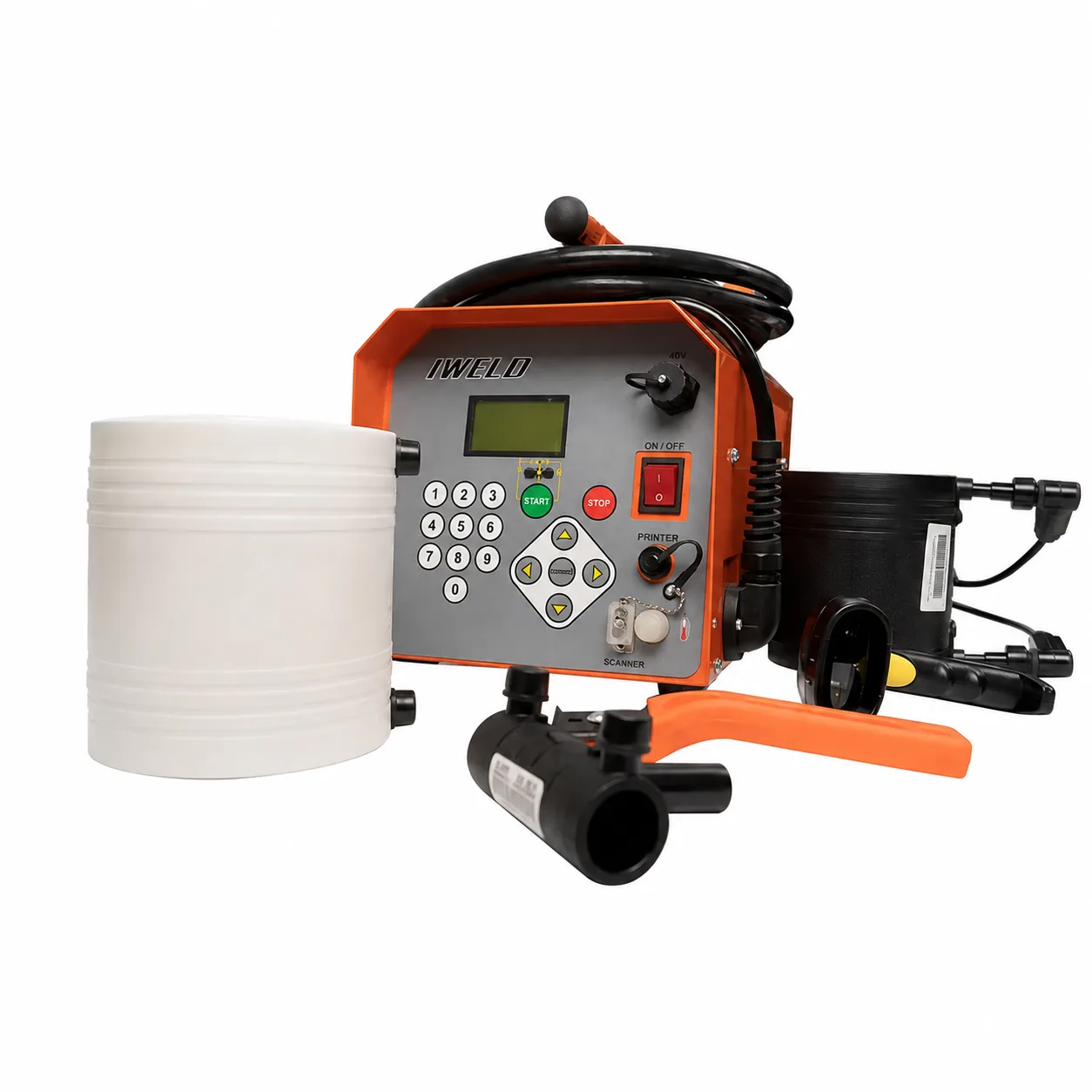

Electrofusion Machine for Fuel and Gas Pipes

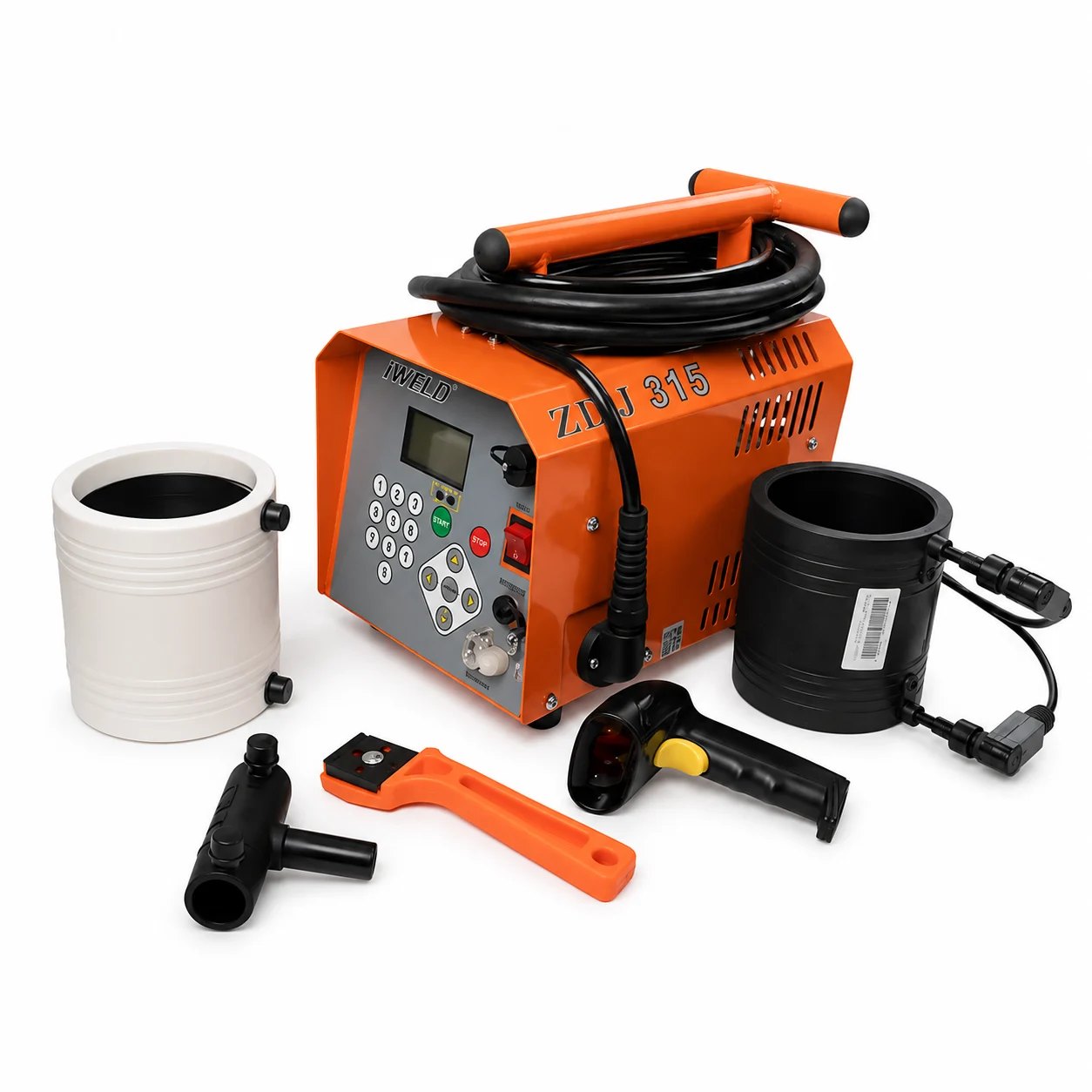

20–315 mm Electrofusion Machine

20-315 mm Electrofusion Machine for reliable joining of PE fuel and gas pipes and fittings.

RAI-EFM-315

Nominal Size

20 mm to 315 mm

Construction

Portable Electronic Control Unit

Jointing Method

Electrofusion

Applicable Standard

ISO 13950 / ISO 12176-4

Overview

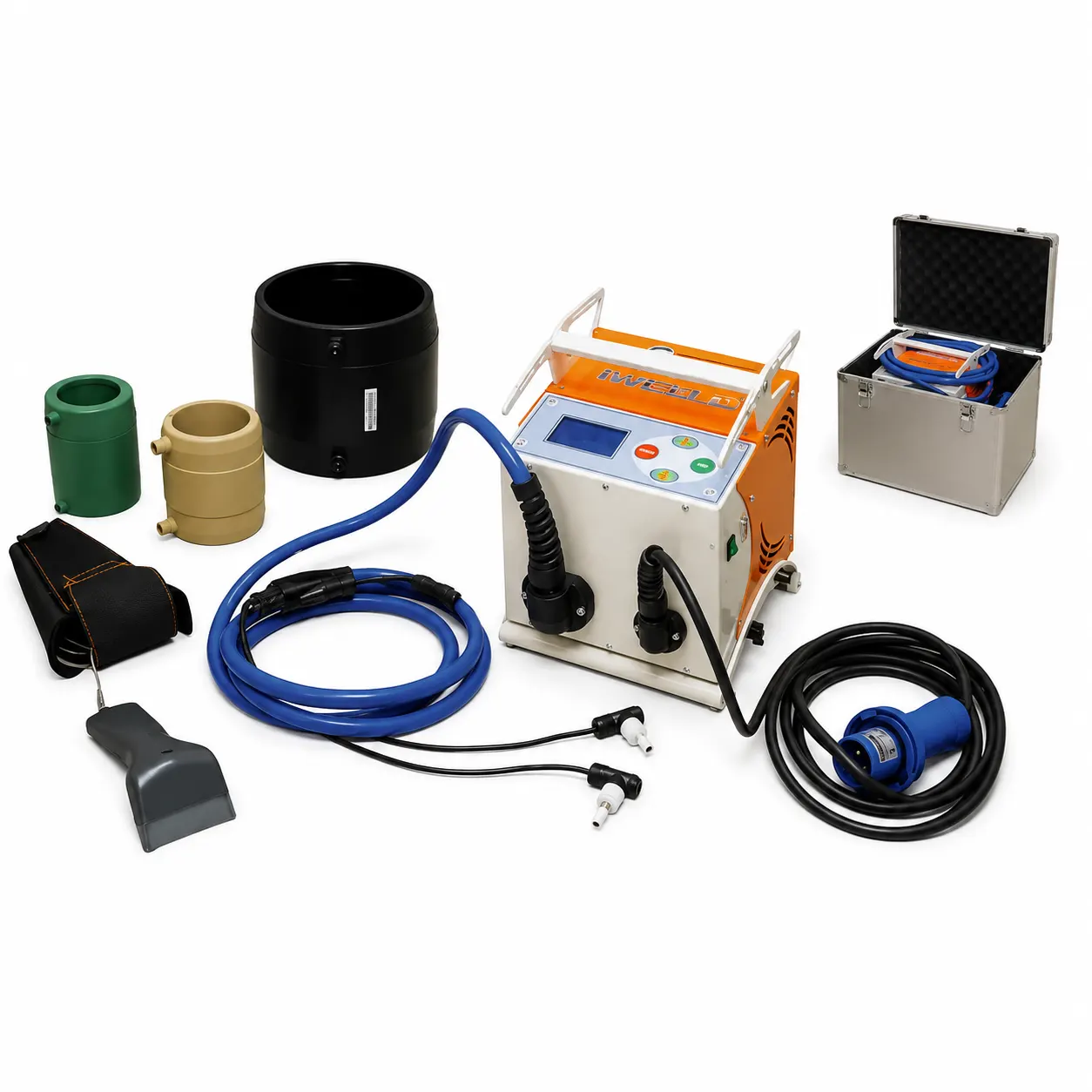

The RAIPL 20-315 mm Electrofusion Machine is a portable welding control unit designed for joining compatible polyethylene fuel and gas pipes and electrofusion fittings. It supports the installation of RAI underground fuel and gas piping systems by providing controlled, repeatable and traceable fusion cycles.

The machine can automatically read fitting parameters through its barcode scanner or accept manual voltage and welding-time inputs. Automatic temperature compensation, monitored welding cycles and digital report storage help improve installation consistency and site documentation.

The verified machine specification includes an 8–48 V welding range, barcode scanner, monitored welding cycle, automatic temperature compensation and storage for 500 welding records.

Key Benefits

20 mm to 315 mm working range
Automatic barcode parameter reading
Manual welding-parameter entry
Temperature-compensated fusion cycle
Memory for 500 welding reports
Portable site-ready construction

Features

Automatic Barcode Setup
The integrated laser scanner reads the electrofusion fitting barcode and automatically sets the required welding parameters, helping reduce manual input errors.

Controlled Welding Cycle
The machine monitors the electrofusion cycle and automatically compensates for ambient-temperature conditions to support consistent joint quality.

Traceable Welding Records
Up to 500 welding cycles can be stored in the internal memory and downloaded in PDF or BIN format for project documentation and quality-control records.

Universal Electrofusion Connection
Universal 90-degree connectors allow the machine to work with a wide range of compatible electrofusion fittings without requiring multiple connection adaptors.

Portable Job-Site Operation
The compact machine body, carrying case and multilingual control panel make the unit suitable for field installation and maintenance work at petroleum and gas-pipeline sites.

Specifications

Product Type

Electrofusion Welding Control Unit

Working Range

20 mm to 315 mm

Compatible Materials

PE / PP / PP-R

Welding Voltage Range

8–48 V

Power Supply

110 V or 230 V, Single Phase

Frequency

50/60 Hz

Maximum Power Consumption

2600 W

Maximum Current

100 A

Recommended Generator

5.5–6 kVA

Memory Capacity

500 Welding Cycles

Operating Temperature

−10°C to +50°C

Transport-Case Size

405 × 285 × 340 mm
